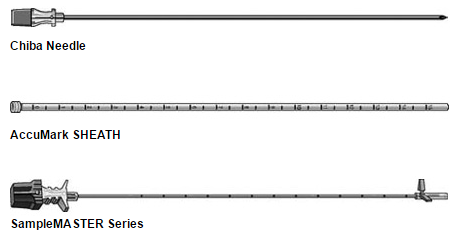

Chiba Type Biopsy Needles


Chiba needle point detail

Chiba needle point detail

All INRAD® Chiba Type Biopsy Needles

  • Crystal clear hub
  • Color coded according to gauge
  • Beveled outer cannula provides excellent collections
  • Available with AccuMark® Sheath for easy depth marking

SampleMASTER® Series has these additional features:

  • SureStop® depth marker that stays where you put it
  • Locking hub for ease of handling, no stylet and cannula separation until you want it
  • Depth marks etched on cannula
  • Palpable alignment markings on hub for easy orientation
  • Optional HiLiter® Ultrasound Enhancement, extremely visible

Ordering Information

Standard
Code Length (in) Length (cm) Carton QTY
54018 18 ga x 5 7/8" (14.9 cm) 20
54118 18 ga x 7 7/8" (20. cm) 20
54020 20 ga x 5 7/8" (14.9 cm) 20
54120 20 ga x 7 7/8" (20.0 cm) 20
54222 22 ga x 3 7/8" (9.8 cm) 20
54022 22 ga x 5 7/8" (14.9 cm) 20
54122 22 ga x 7 7/8" (20.0 cm) 20
With AccuMark Sheath
Code Length (in) Length (cm) Carton QTY
45018 18 ga x 5 7/8" (14.9 cm) 20
45118 18 ga x 7 7/8" (20. cm) 20
45020 20 ga x 5 7/8" (14.9 cm) 20
45120 20 ga x 7 7/8" (20.0 cm) 20
45222 22 ga x 3 7/8" (9.8 cm) 20
45022 22 ga x 5 7/8" (14.9 cm) 20
45122 22 ga x 7 7/8" (20.0 cm) 20
SampleMASTER
Code Length (in) Length (cm) Carton QTY
54818 18 ga x 5 7/8" (14.9 cm) 20
54720 20 ga x 3 7/8" (9.8 cm) 20
54820 20 ga x 5 7/8" (14.9 cm) 20
54722 22 ga x 3 7/8" (9.8 cm) 20
54822 22 ga x 5 7/8" (14.9 cm) 20
54922 22 ga x 7 7/8" (20.0 cm) 20
SampleMASTER with HiLiter Ultrasound Enhancement
Code Length (in) Length (cm) Carton QTY
53218 18 ga x 2 3/8" (6.0 cm) 10
53818 18 ga x 5 7/8" (14.9 cm) 10
53220 20 ga x 2 3/8" (6.0 cm) 10
53720 20 ga x 3 7/8" (9.8 cm) 10
53820 20 ga x 5 7/8" (14.9 cm) 10
53222 22 ga x 2 3/8" (6.0 cm) 10
53722 22 ga x 3 7/8" (9.8 cm) 10
53822 22 ga x 5 7/8" (14.9 cm) 10
53922 22 ga x 7 7/8" (20.0 cm) 10
